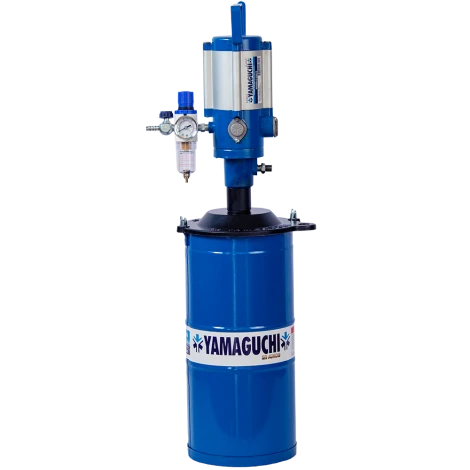

- Pneumatic grease pump with 26,4555 lbs (12 Kg) reservoir, follower plate and practical spatula.
Model 284
Código: B284.0001
Description:
Technical information:
- Flow rate: 17.63 oz/min at 87psi (500g/min at 6 bar)
- Ratio: 50:1
- Recommended working air pressure: 72.5 psi (5 bar)
- Air Operation Range: 43.5-116 psi (3-8 bar)
- Maximum grease pressure: 6000 psi (413.6 bar)
- Air consumption: 400 L/min at 8bar
- Air inlet size: 1/4” NPT
- Grease outlet size: 1/2”- 27
- Recommended air inlet hose: 1/4" NTP PT500
- Recommended grease outlet hose: 1/4" SAE 100R2AT 19.68 ft (6 m)
- Weight: 22.85 lbs (10.36Kg)
- Product dimensions: 10.43” (L) x 8.66” (W) x 31.30” (H)
- (265mm (L) x 220mm (W) x 795mm (H))
